SHANMON956D輪式裝載機主要結構特點和采用的先進技術

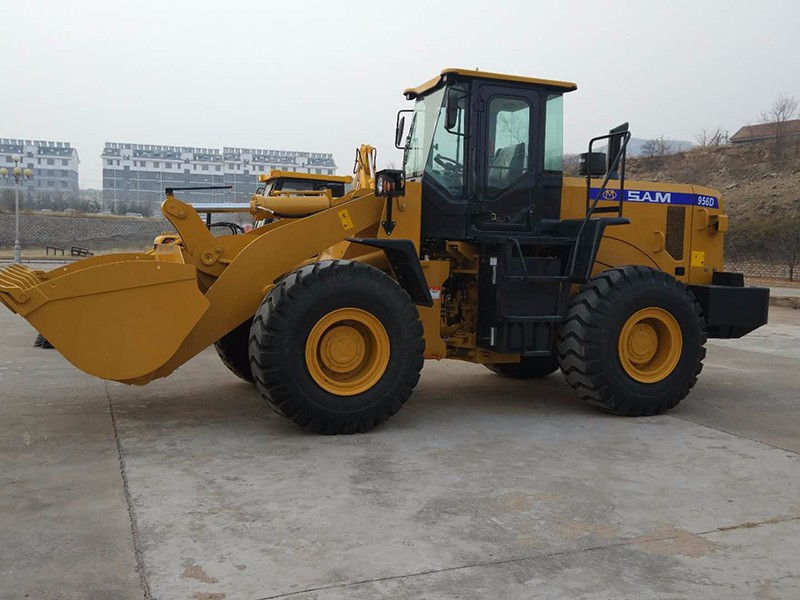

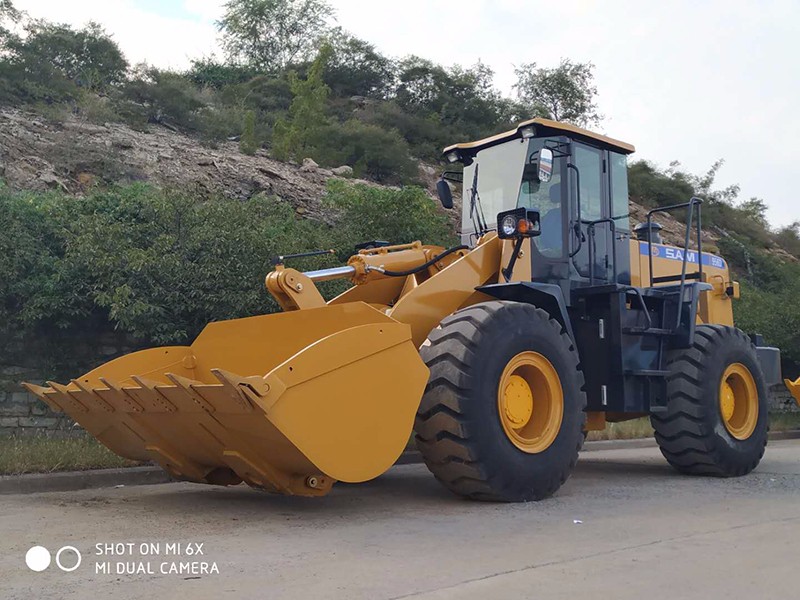

Main specifications and characters of  SAM956D  loader

1、采用中央鉸接式車架，轉彎半徑小，機動靈活，側向穩定性好，便于在狹窄場地作業。Central articulated frame, small turning radius, mobile and flexible, lateral stability, ease of operation in the narrow space.

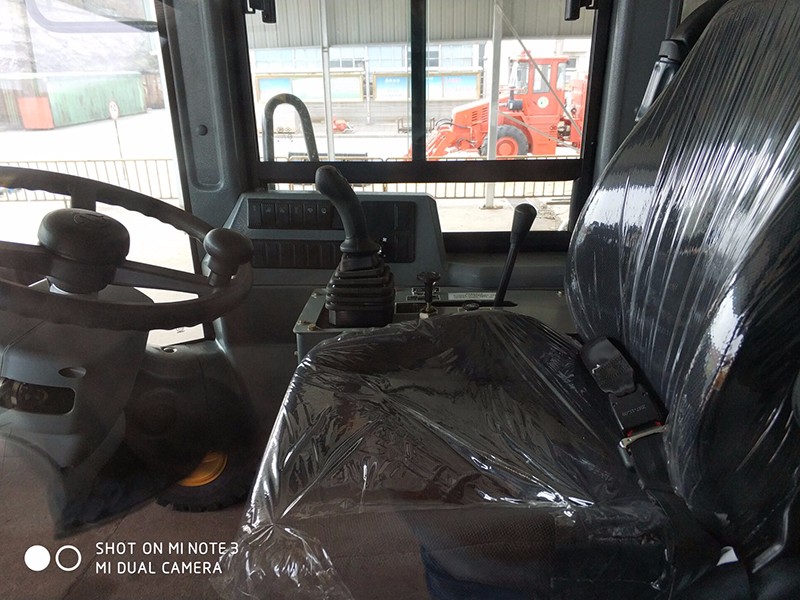

2、人性化設計，視野寬闊，駕駛舒適。Easy-to-read gauges display and ergonomically designed controls make the driving convenient and comfortable

3、采用了氣頂油鉗盤式四輪制動系統保證行車安全，制動平穩，安全可靠；駐車采用鉗盤式制動Air over hydraulic disc brake on 4 wheels system and expire brake is used in brake system, which has large brake force and makes stable brake and high safety

4、采用濰柴斯太爾柴油機，動力強勁，扭矩儲備達，低耗油，低噪音，性能可靠；標配雙級空氣濾清器，適合于粉塵較多的作業場所。Weichai Styer turbo-charged diesel engine is high power and torque, low fuel consumption and noise ,high reliability .Double-stage air filter is standard equipment for dusty fields.

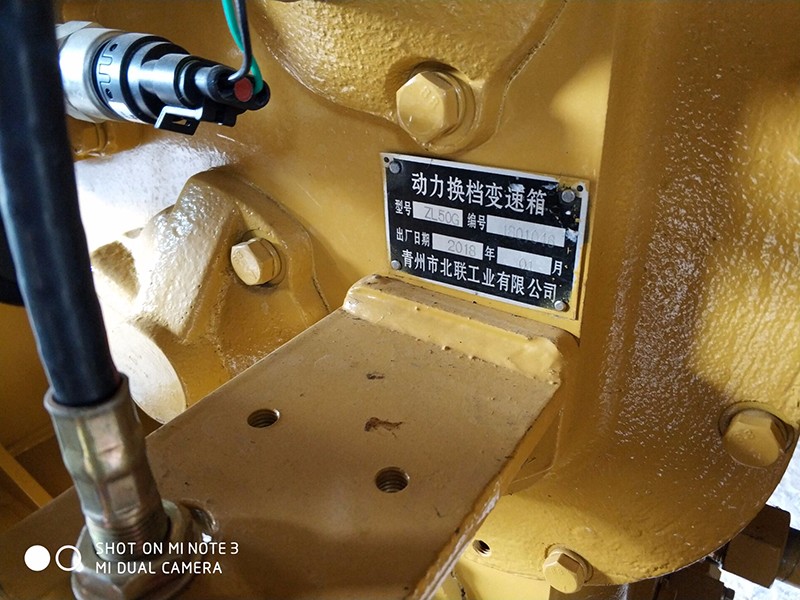

5、采用全液壓轉向，動力換檔變速，工作裝置液壓操縱，整機操作輕便靈活，動作平穩可靠。Full hydraulic steering, power shift transmission, hydraulic control device work with two lightweight flexible operation, action smooth and reliable

6、雙泵合流和同軸流量放大系統提高了工作效率和經濟性Twin pump-merging flow of working pump and steering pump. when the machine is not steering more engine power is available to breakout and lift forces. Resulting in increased economy

7、先導控制使操作更靈活舒適

Pilot hydraulic implement controls make operate easy and comfortable

8、折疊式大側門鋼結構發動機罩，美觀大方，維修方便

The big loading engine side covers made in steel are of good appearance and suitable for maintenance
