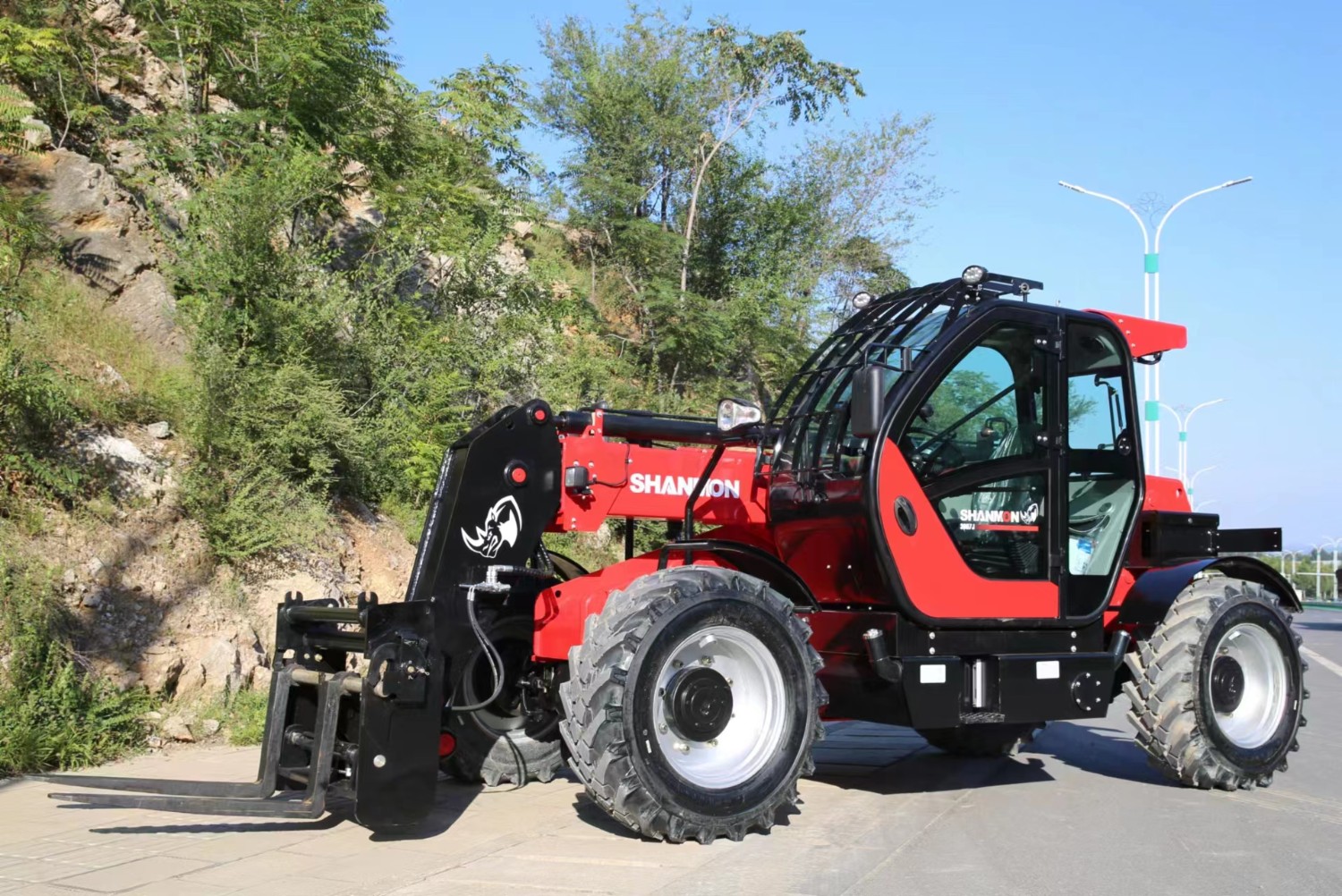

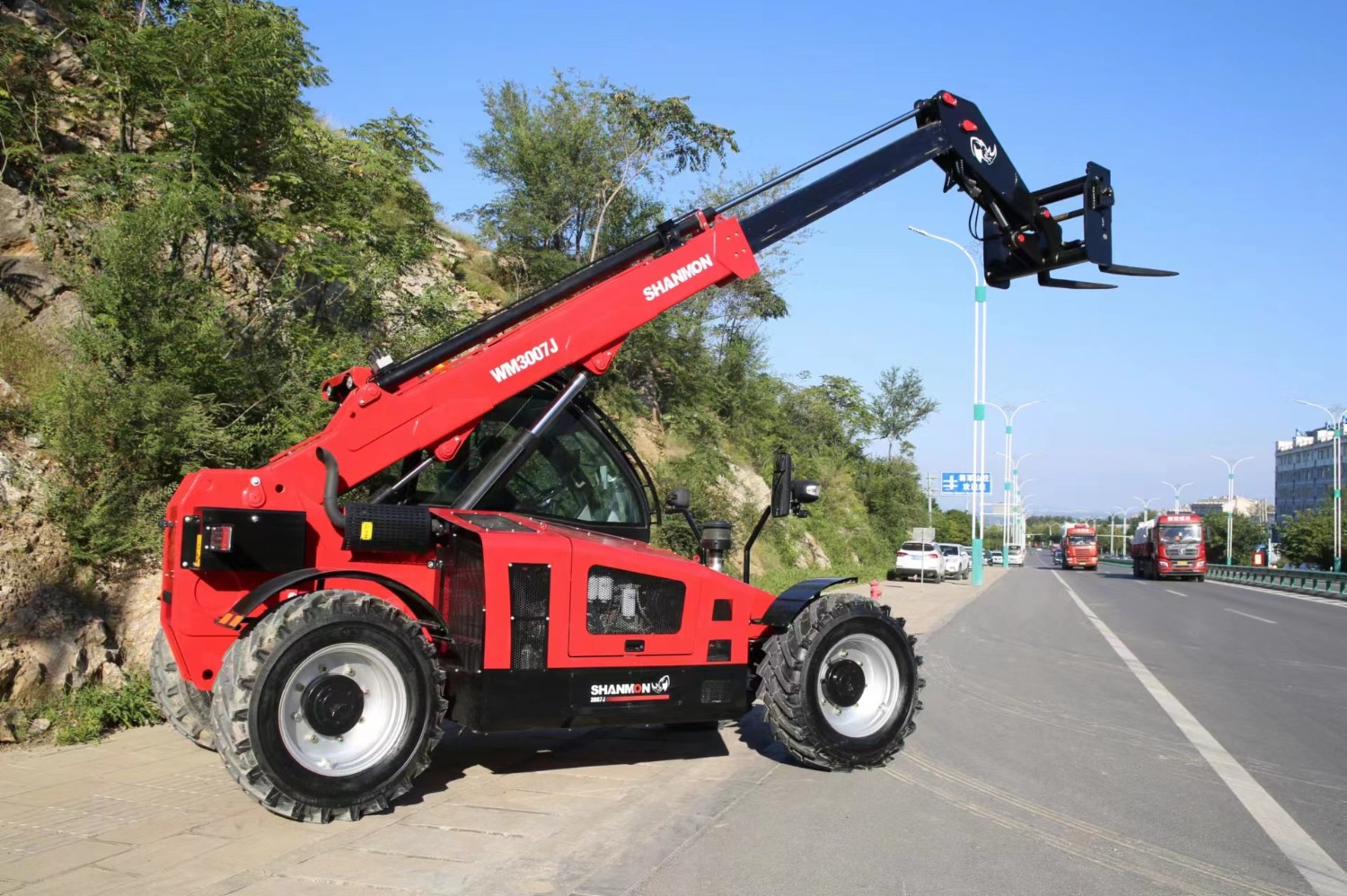

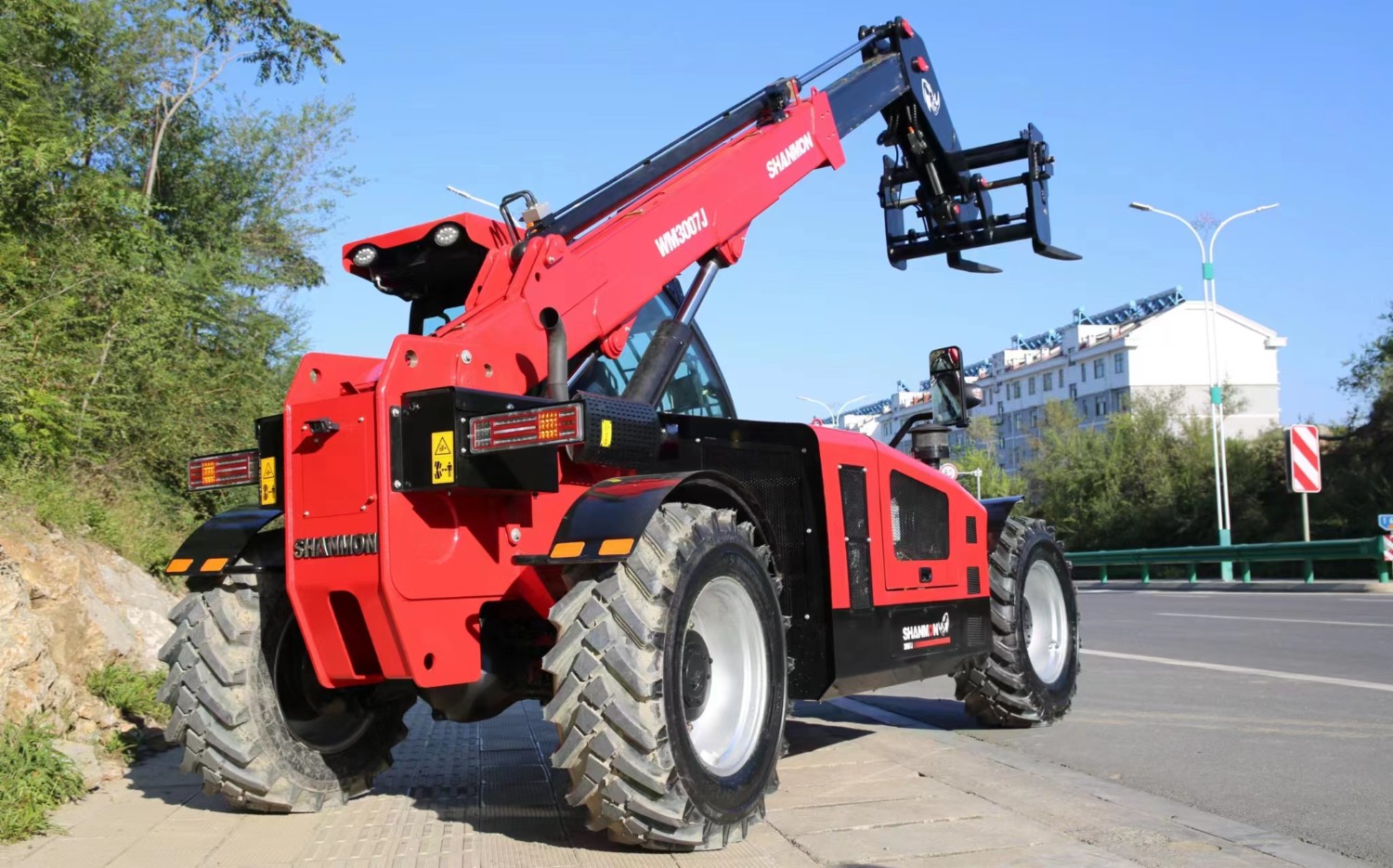

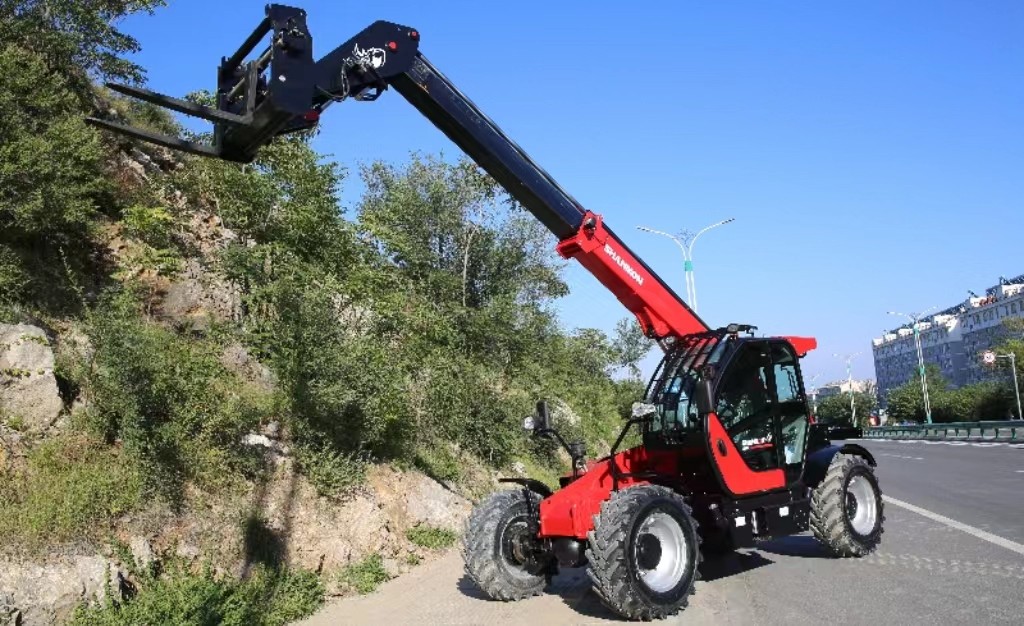

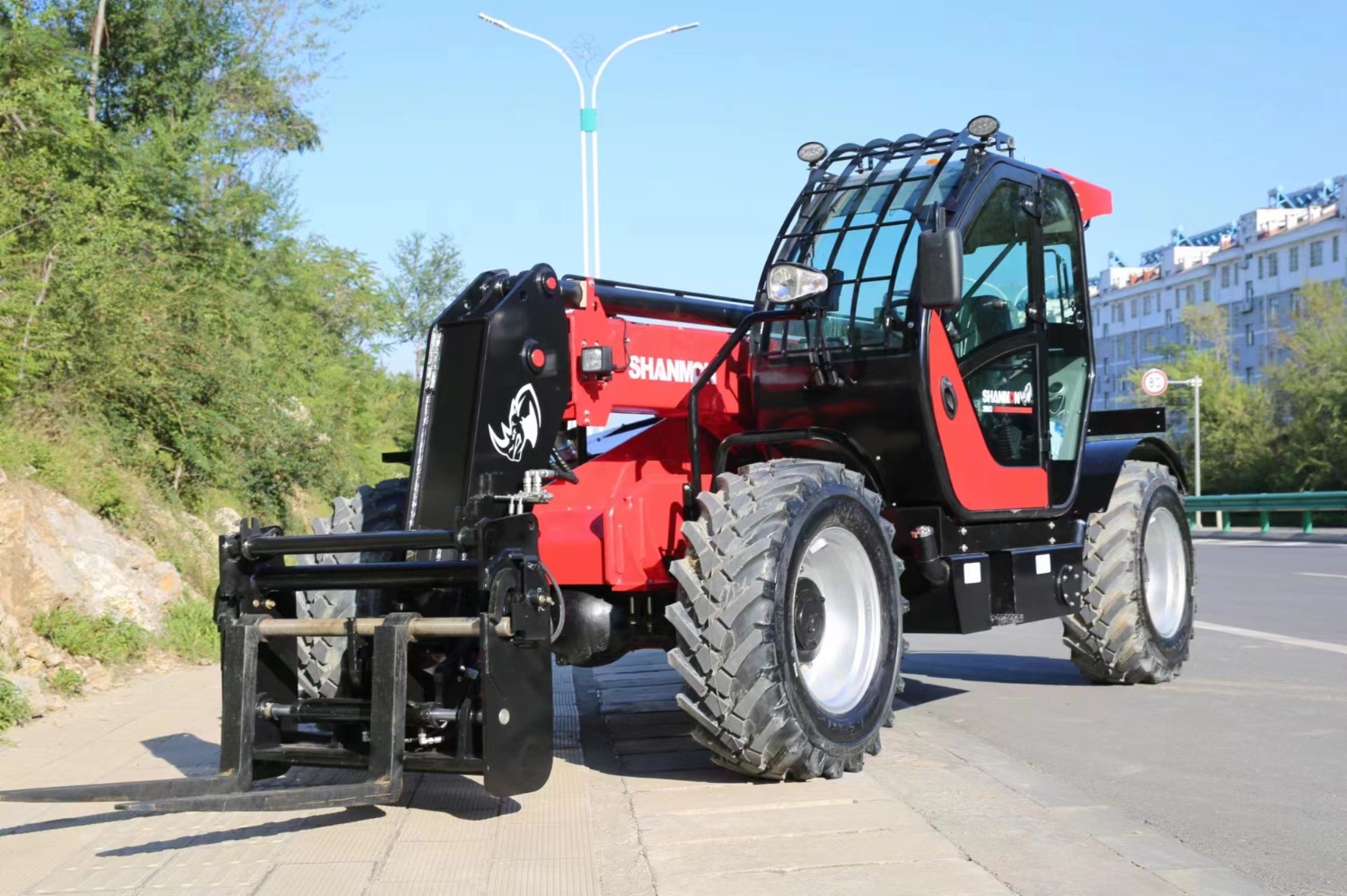

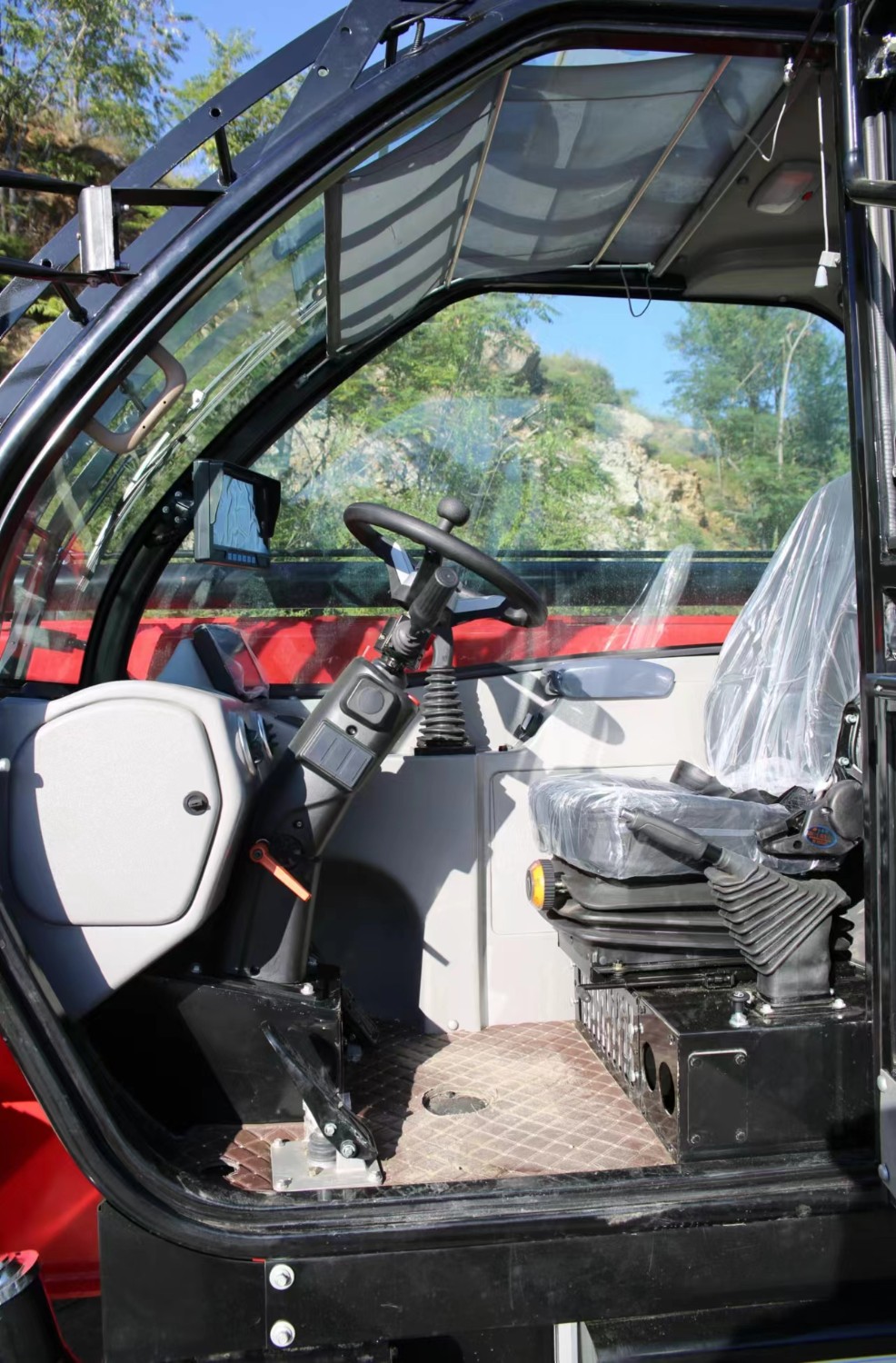

SHANMON Telescopic Handler 3007J

SHANMON Telescopic Handler 3007J

主要性能特點：

有效作業幅度大，可超過障礙直接裝卸貨物。

Large effective operation range,can load and unload goods directly over obstacles.

具有負載伸縮功能，作業安全可靠。

Equipped with loading telescopic function,ensuring safe and reliable operation.

易更換多種輔具，可實現多功能作業。

Easy to change multiple attachments,enabling multifunctional operations.

總尺寸Overall Dimension

1 整機總長（鏟斗放置地面）Length(with bucket on ground) 6490±50mm

2 整機總寬(輪胎外沿、機罩外沿)Overall width（Tire outer edge, hood outer

edge) 2280±20mm

3 鏟斗寬度Load Bucket width 2250±10 mm

4 整機高度（到駕駛室頂）Height(To the top of the cabin) 2580±20mm

5 軸距Wheel base(MM) 3450±10mm

6 輪距 Wheel Tread(MM) 1855±10mm

裝載主要技術參數 Main Loading Technical Specification

1 額定載重量Rated load 3000KG

2 操作重量 Operating weight 8300KG

3 額定斗容 Rated bucket capacity 1.6 m3

4 較大卸載高度（41°卸料角）

Maximum dump height (41° discharge Angle) 6000mm

5 卸載距離Dump reach 560mm

6 轉彎半徑Turning raduis 鏟斗外沿/內輪胎中心

Bucket outside rim/inside tire center 6200±50/3600±50mm

7 動作時間Actuation time 舉升時間  空載/滿載

Lifting time Empty/full load 10.7/15.5 S

下降時間 Falling time 7.7 S

翻斗時間 Tipping time 6.7 S

挖掘主要技術參數Main Digging Technical Specification

發動機 Engine

1 發動機型號Engine model YC4A105Z-T20

2 冷卻形式Cooling type 水冷Water cooling

3 額定功率 Rated power 75 (kW)

4 排氣量Total exhaust of cylinder 4.8(L)

5 額定轉速Rated speed 2200(r/min)

6 較大扭矩Max. Torque 400(N.M)

傳動系統 Transmission System

1

　 液力變矩器Torque Converter 型號Model 290

冷卻方式Cooling type 壓力油循環Pressure oil circulating

2 變速箱Transmission case 型號Model ZL15

形式Type 電液同步換檔

Electro-hydraulic synchronous shift

3 橋Axle 前驅動橋型號Front Axle Model WL96Q2W

后驅動橋型號Rear Axle Model WL96Q2A

4 變速箱檔位 Gear shift position 4 F、 4 R前四后四檔位

5 速度Speed（F/R）km/h 前進1檔 F1: 6 km/h; 前進2檔 F2: 14km/h

前進3檔 F3: 23km/h; 前進4檔 F4: 36km/h

后退1檔 R1: 6km/h; 后退2檔 R2: 14km/h

后退3檔 R3: 23km/h;后退4檔 R4: 36km/h

6 輪胎型號Tire size                 16/70-24

液壓系統 Hydraulic system

1 工作泵排量Working pump displacement 63ml/r

2 工作泵壓力Working pump pressure 20Mpa

3 轉向器型號 Steering gear model BZZ-500

油箱容量 Tank CapaciSHANMON Telescopic Handler 3007J
